Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Specs

Rated capacity 9500 lbs. @ 6.23 ft/min
Max GVWR 6333 lbs.
Power 6.6 HP 12V Electric
Model number 98495
Weight 46 lb
Line 98.5' 3/8" Synthetic
Size 20.88" X 6.3" X 7.4"
Attributes Electric IP67 Wired Synthetic
Price @Amazon
Deals

Last updated: Feb 19, 2019

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Max Weight Capacity ↑TOP

Maximum Vehicle Weight

You need a winch with a capacity of at least: 6750 Pounds

With your GVWR of 4500 pounds this winch is strong enough for your vehicle. This winch's capacity is times your GVWR.

Manufacturers recommend a winch capacity 1.5-2 times your GVWR.

Winch Pulling Power vs. Cable Layers

In our chart, you can see that this winch, like all winches, is more powerful with fewer wraps of cable on the drum.

If you need more pulling power, use a winch anchor that's further away or use a snatch block.

More spooled out winch line = More pulling power!

Safety issue! The first layer should always have at least 5 wraps of cable on the winch drum when the winch is under load.

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Pulling Power per Cable Layer

▼ MORE

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Pulling Power per Cable Layer
Cable Layers Pounds
1 9500 lbs.
2 8435 lbs.
3 7640 lbs.
4 7086 lbs.

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Winch Lines ↑TOP

In the next chart, we look at when different winch line configurations will break when you use the Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495.

Stock winch line: 98.5' 3/8" diameter Synthetic

Winch lines break because they get overloaded.

Synthetic winch lines have higher breaking strengths than steel for a given diameter.

Some wheelers switch their winch line - some go up a size in synthetic (i.e. 5/16" to 3/8") to get more strength. Others will go down a size (i.e. 3/8" to 5/16") to get extra length while choosing a synthetic winch rope that has at least as much strength as the factory steel cable.

Tips

  • If you're really stuck, help your winch motor and winch line by either digging/moving dirt or repositioning your rig with a Hi-Lift Jack.
  • A double winch line using a snatch block is much safer (though slower) than a single winch line.
  • Use a winch line damper.

Winch Line Breaking Strength vs. Your GVWR

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Power ↑TOP

Power Type Electric
Motor Voltage 12V
Gear Ratio 161.28:1
Gear system 3 Stage Planetary
Clutch Sliding Ring Gear
Brake Automatic In-Drum
Fastest linespeed 32.34 ft/min pulling 0 lbs.
Slowest linespeed 6.23 ft/min pulling 9500 lbs.

We recommend electric winches for most fourwheelers.

Electric winches will work without the engine running, which may be necessary in certain situations like a rollover or with a water-flooded engine.

Winch Load vs. Motor Amperage and Line Speed

▼ MORE

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Line Speed and Amp Draw Under Load
Load Linespeed Amp draw
0 lbs. 32.34 feet/minute 80 A
2000 lbs. 19.68 feet/minute 165 A
4000 lbs. 14.76 feet/minute 240 A
6000 lbs. 10.82 feet/minute 320 A
8000 lbs. 9.35 feet/minute 380 A
9500 lbs. 6.23 feet/minute 435 A

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Control ↑TOP

Remote

Wired remote?
Wired remote lead length 12'
Wireless remote?
Can add wireless remote?

Winches come with a wired remote, a wireless remote, or both.

Wireless remotes work at a further distance than wired remotes, and have no cables that get snagged. You do need to make sure that the batteries have a charge.

Control Pack

Control pack type Solenoid
Control pack pin count None

Your winch remote actually controls a control pack that uses either solenoids or contactors.

Solenoids are older technology, so you find them on older and budget winches.

Contactor packs are newer technology and are found on newer winches.

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Dimensions ↑TOP

Winch

Length 20.88"
Depth 6.3"
Height 7.4"
Weight 46 lb

Read more about how winch line and fairleads affect the weight of your winch.

Fairlead

Fairlead type Aluminum hawse
Fairlead mount distance 10"

You can use an aluminum hawse fairlead ONLY with synthetic winch rope. Steel winch cable will destroy an aluminum hawse.

You can use a steel roller fairlead with steel winch cable or synthetic winch rope.

However, note that every winch rope manufacturer DOES recommend that you switch to an aluminum hawse. This is likely because used steel roller fairleads often have gouges and burrs that can damage a synthetic winch rope.

Mounting

Mounting pattern 4.5" x 10"
Foot orientation Foot down or foot forward
Motor clockable?
Gearbox clockable?

Read more about foot-forward vs. foot-down winch mounting.

Read more about winch clocking.

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Details ↑TOP

Features

Waterproof rating IP67
Finish Uv Resistant Textured Matte Black
Bracing Aluminum Tie Bar
Made in China
  • 3 solenoid pack mounting positions
  • Magnetic remote sticks on any steel surface

In the Box

  • Winch
  • Winch hook
  • Mounting hardware
  • Battery cables
  • Aluminum hawse fairlead
  • Wired remote

Warranty

Lifetime mechanical, 3 year electrical

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Installation ↑TOP

Hardware

Mounting hardware 4-M10x32mm w/square nuts
Mounting hardware torque 60 Nm

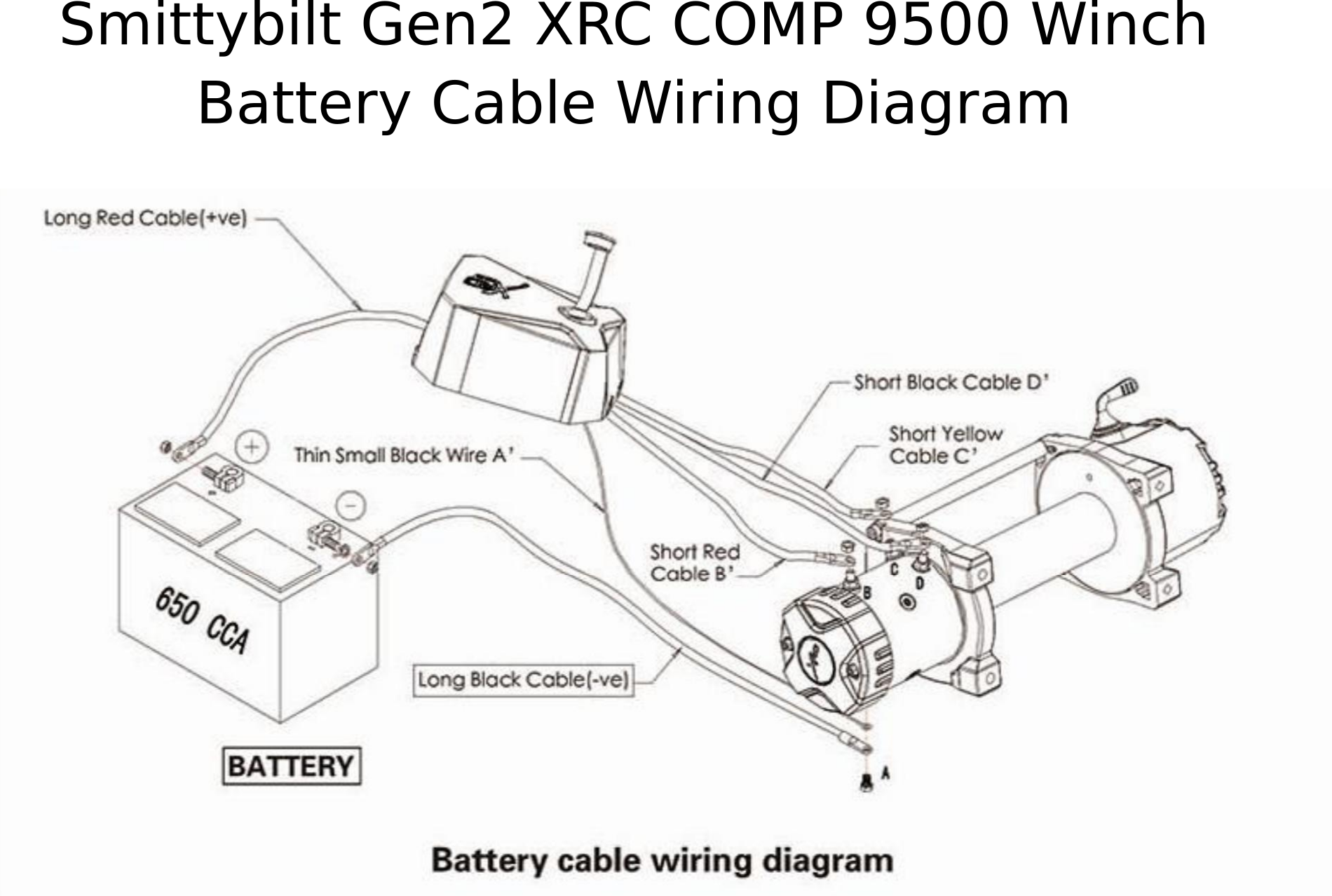

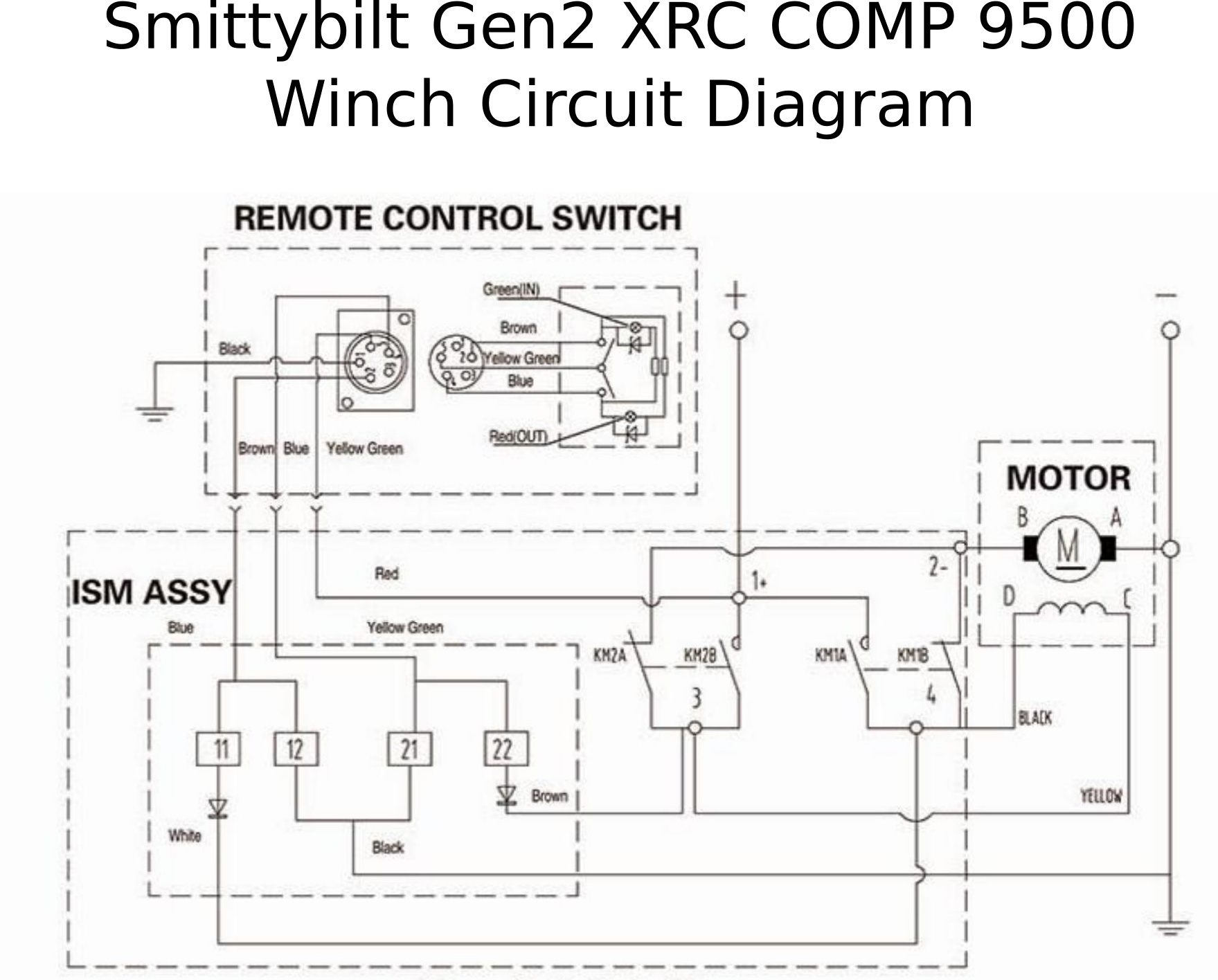

Electrical

View

View

Smittybilt Gen2 XRC Comp 9500 Synthetic Winch 98495 Manual and Parts List ↑TOP
