Winch-databases

Smittybilt Gen2 X2O 10000 Winch

01/01/0001
Smittybilt Gen2 X2O 10000 Winch name: Smittybilt Gen2 X2O 10000 title: Smittybilt Gen2 X2O 10000 Winch model: Gen2 X2O 10000 model_number: 97510 ASIN: slug: smittybilt-gen2-x2o-10000-winch manufacturer: Smittybilt rated_line_pull: 10000 voltage: 12 motor_hp: 6.6 gear_ratio: 218 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 73 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 99 length: 22.3 depth: 5.4 height: 9.4 line_type: steel line_diameter: 3⁄8 line_length: 98.5 waterproof_rating: IP68
Read More…

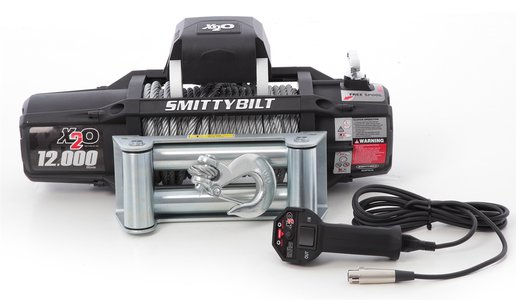

Smittybilt Gen2 X2O 12000 Winch

01/01/0001
Smittybilt Gen2 X2O 12000 Winch name: Smittybilt Gen2 X2O 12000 title: Smittybilt Gen2 X2O 12000 Winch model: Gen2 X2O 12000 model_number: 97512 ASIN: slug: smittybilt-gen2-x2o-12000-winch manufacturer: Smittybilt rated_line_pull: 12000 voltage: 12 motor_hp: 6.6 gear_ratio: 265 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 75 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 99 length: 22.3 depth: 5.4 height: 9.4 line_type: steel line_diameter: 3⁄8 line_length: 98.5 waterproof_rating: IP68
Read More…

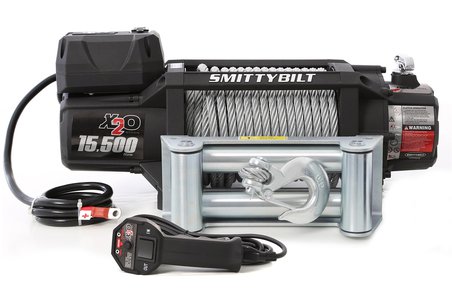

Smittybilt Gen2 X2O 15500 Winch

01/01/0001
Smittybilt Gen2 X2O 15500 Winch name: Smittybilt Gen2 X2O 15500 title: Smittybilt Gen2 X2O 15500 Winch model: Gen2 X2O 15500 model_number: 97515 ASIN: slug: smittybilt-gen2-x2o-15500-winch manufacturer: Smittybilt rated_line_pull: 15500 voltage: 12 motor_hp: 6.6 gear_ratio: 430 drum_diameter: 10 drum_length: 3.45 power: electric battery_lead_length: 77 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 150 length: 22.3 depth: 7.5 height: 10.7 line_type: steel line_diameter: 7⁄16 line_length: 98.5 waterproof_rating: IP68
Read More…

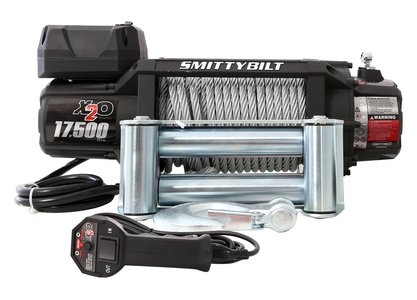

Smittybilt Gen2 X2O 17500 Winch

01/01/0001
Smittybilt Gen2 X2O 17500 Winch name: Smittybilt Gen2 X2O 17500 title: Smittybilt Gen2 X2O 17500 Winch model: Gen2 X2O 17500 model_number: 97517 ASIN: slug: smittybilt-gen2-x2o-17500-winch manufacturer: Smittybilt rated_line_pull: 17500 voltage: 12 motor_hp: 6.6 gear_ratio: 430 drum_diameter: 10 drum_length: 3.45 power: electric battery_lead_length: 78 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 150 length: 22.3 depth: 7.5 height: 10.7 line_type: steel line_diameter: 1⁄2 line_length: 98.5 waterproof_rating: IP68
Read More…

Smittybilt Gen2 X2O COMP 10000 Winch

01/01/0001
Smittybilt Gen2 X2O COMP 10000 Winch name: Smittybilt Gen2 X2O COMP 10000 title: Smittybilt Gen2 X2O COMP 10000 Winch model: Gen2 X2O COMP 10000 model_number: 98510 ASIN: slug: smittybilt-gen2-x2o-comp-10000-winch manufacturer: Smittybilt rated_line_pull: 10000 voltage: 12 motor_hp: 6.6 gear_ratio: 218 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 74 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: length: 22.3 depth: 5.4 height: 9.4 line_type: synthetic line_diameter: line_length: 98.5
Read More…

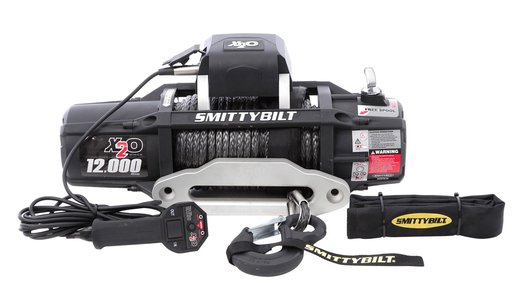

Smittybilt Gen2 X2O COMP 12000 Winch

01/01/0001
Smittybilt Gen2 X2O COMP 12000 Winch name: Smittybilt Gen2 X2O COMP 12000 title: Smittybilt Gen2 X2O COMP 12000 Winch model: Gen2 X2O COMP 12000 model_number: 98512 ASIN: slug: smittybilt-gen2-x2o-comp-12000-winch manufacturer: Smittybilt rated_line_pull: 12000 voltage: 12 motor_hp: 6.6 gear_ratio: 265 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 76 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: length: 22.3 depth: 5.4 height: 9.4 line_type: synthetic line_diameter: line_length: 98.5
Read More…

Smittybilt Gen2 XRC 12000 Winch

01/01/0001
Smittybilt Gen2 XRC 12000 Winch name: Smittybilt Gen2 XRC 12000 title: Smittybilt Gen2 XRC 12000 Winch model: Gen2 XRC 12000 model_number: 97412 ASIN: slug: smittybilt-gen2-xrc-12000-winch manufacturer: Smittybilt rated_line_pull: 12000 voltage: 12 motor_hp: 6.6 gear_ratio: 193.2 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 72 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 89 length: 21.2 depth: 6.4 height: 7.8 line_type: steel line_diameter: 3⁄8 line_length: 94 waterproof_rating: IP67
Read More…

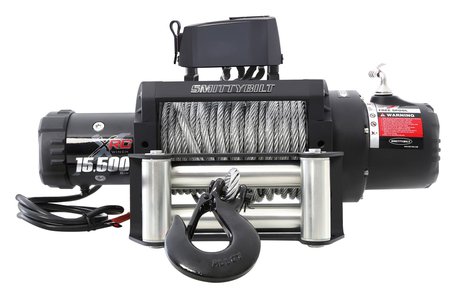

Smittybilt Gen2 XRC 15500 Winch

01/01/0001
Smittybilt Gen2 XRC 15500 Winch name: Smittybilt Gen2 XRC 15500 title: Smittybilt Gen2 XRC 15500 Winch model: Gen2 XRC 15500 model_number: 97417 ASIN: slug: smittybilt-gen2-xrc-15500-winch manufacturer: Smittybilt rated_line_pull: 17500 voltage: 12 motor_hp: 6.6 gear_ratio: 330 drum_diameter: 10 drum_length: 3.7 power: electric battery_lead_length: 72 gear_system: 4 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 141 length: 24.4 depth: 8.4 height: 10.7 line_type: steel line_diameter: 7⁄16 line_length: 94 waterproof_rating: IP67
Read More…

Smittybilt Gen2 XRC 9500 Winch

01/01/0001
Smittybilt Gen2 XRC 9500 Winch name: Smittybilt Gen2 XRC 9500 title: Smittybilt Gen2 XRC 9500 Winch model: Gen2 XRC 9500 model_number: 97495 ASIN: slug: smittybilt-gen2-xrc-9500-winch manufacturer: Smittybilt rated_line_pull: 9500 voltage: 12 motor_hp: 6.6 gear_ratio: 161.28 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 72 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: 78 length: 20.88 depth: 6.3 height: 7.4 line_type: steel line_diameter: 5⁄16 line_length: 94 waterproof_rating: IP67
Read More…

Smittybilt Gen2 XRC COMP 12000 Winch

01/01/0001
Smittybilt Gen2 XRC COMP 12000 Winch name: Smittybilt Gen2 XRC COMP 12000 title: Smittybilt Gen2 XRC COMP 12000 Winch model: Gen2 XRC COMP 12000 model_number: 98412 ASIN: slug: smittybilt-gen2-xrc-comp-12000-winch manufacturer: Smittybilt rated_line_pull: 12000 voltage: 12 motor_hp: 6.6 gear_ratio: 193.2 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 72 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: length: 21.2 depth: 6.4 height: 7.8 line_type: synthetic line_diameter: line_length: 94
Read More…

Smittybilt Gen2 XRC COMP 9500 Winch

01/01/0001
Smittybilt Gen2 XRC COMP 9500 Winch name: Smittybilt Gen2 XRC COMP 9500 title: Smittybilt Gen2 XRC COMP 9500 Winch model: Gen2 XRC COMP 9500 model_number: 98495 ASIN: slug: smittybilt-gen2-xrc-comp-9500-winch manufacturer: Smittybilt rated_line_pull: 9500 voltage: 12 motor_hp: 6.6 gear_ratio: 161.28 drum_diameter: 10 drum_length: 2.5 power: electric battery_lead_length: 72 gear_system: 3 stage planetary clutch: sliding ring gear brake: automatic in-drum weight: length: 20.88 depth: 6.3 height: 7.4 line_type: synthetic line_diameter: line_length: 94
Read More…

Warn M12000 Winch

01/01/0001
Warn M12000 Winch name: Warn M12000 title: Warn M12000 Winch model: M12000 model_number: 17801 ASIN: slug: warn-m12000-winch manufacturer: Warn rated_line_pull: 12000 voltage: 12 motor_hp: 4.6 gear_ratio: 261.1 drum_diameter: drum_length: power: electric battery_lead_length: gear_system: clutch: brake: weight: 136 length: 24.37 depth: 8.45 height: 11 line_type: steel line_diameter: 3⁄8 line_length: 125 waterproof_rating: bracing: finish: Argent grey powder coat mounting_pattern_x: mounting_pattern_y: orientation: control_pack_type: control_switch: fairlead: steel roller fairlead_mounting_pattern: 1_layer_rated_line_pull: 2_layer_rated_line_pull: 3_layer_rated_line_pull: 4_layer_rated_line_pull: 5_layer_rated_line_pull: psa_1: psa_2: psa_3: psa_4: psa_5: psa_6: psa_7: features: parts: warranty: line_wll: 2880
Read More…

Warn M8000 Winch

01/01/0001
Warn M8000 Winch name: Warn M8000 title: Warn M8000 Winch model: M8000 model_number: 26502 ASIN: slug: warn-m8000-winch manufacturer: Warn rated_line_pull: 8000 voltage: 12 motor_hp: 4.8 gear_ratio: 216.1 drum_diameter: drum_length: power: electric battery_lead_length: gear_system: clutch: brake: weight: 80 length: 21.04 depth: 6.3 height: 7.6 line_type: steel line_diameter: 5⁄16 line_length: 100 waterproof_rating: bracing: finish: Argent grey powder coat mounting_pattern_x: mounting_pattern_y: orientation: foot down, foot forward control_pack_type: contactor control_switch: fairlead: steel roller fairlead_mounting_pattern: 9.
Read More…
