Find the Best Optima Battery Charger

Optima batteries are expensive. A lot of us run them in weekend rigs or something that only gets used seasonally - the last thing we want is to need to buy a new one from running it down or not keeping it charged.

No problem:

Luckily, although Optimas use different tech from regular batteries, they aren't hard to charge and maintain.

We'll take a look at some different Optima chargers, how to charge an Optima battery, trickle charging Optimas, and a trick for recharging a deeply discharged Optima.

Table of Contents

Do You Need a Special Charger For an Optima Battery?

It depends.

The short answer is that a normal battery charger will work for an Optima in "normal" conditions. This would be doing things like float charging or topping up a lightly discharged battery.

But if you need to resuscitate a dead Optima that has been deeply discharged, you need a special charger (there is a trick around this).

Why Would You Need an Optima-Specific Charger?

We're going to get into the nitty-gritty:

Optima batteries have a low internal resistance and this fact drives a lot of their performance. Traditional batteries have high internal resistance. Basically, it's easier to get more electricity out of an Optima than a traditional battery.

Practically speaking this means that an Optima:

  • Has an easier time with high amperage outputs
  • Has an easier time being recharged
  • Can run longer than it's actually rated for
  • Can drop to a voltage lower than a traditional battery

That last point is key:

Where a traditional battery might just putter out, an Optima can keep running down and providing amps to whatever you're doing.

The problem appears when you have a deeply discharged Optima and a traditional battery charger.

Traditional analog battery chargers are pretty dumb. They primarily work by reading battery voltage and using that to determine whether to charge a battery or not.

To a traditional battery charger, a deeply discharged Optima battery is a bad battery. For the most part, "deeply discharged" means an Optima that reads at 10.5 volts or less on a voltmeter.

In fact, if a battery reaches 10.5 volts, it's considered to be "fully discharged". With a traditional battery, a 10.5V reading means it's not putting out any more power.

But a 10.5V-reading, low-resistance Optima will still pump some electricity out until it reaches a pretty low voltage.

The result?

A traditional battery charger that sees 10.5V or less on an Optima won't even turn on. However, an Optima battery charger can recharge an Optima that has a voltage as low as 1.25 volts!

What Output Does an Optima Battery Need From a Charger?

Optima recommends a maximum of 10 amps at 13.8-15 volts for regular charging.

If you're float charging, Optima recommends a maximum of 1 amp at 13.2-13.8 volts.

What Kind of Features Should I Look for in a Charger?

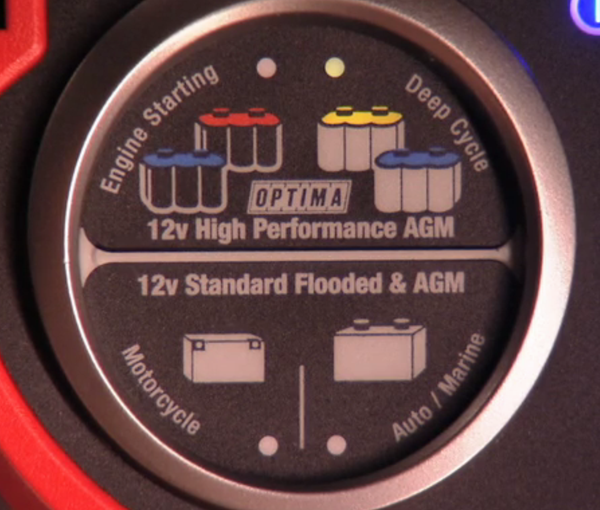

Optima Battery Charger Settings
You KNOW that Optima-brand battery chargers work with their batteries, but they work with other battery types as well.

Let's assume you want the best features you can get in a battery charger that works with your Optima. Here's what we'd look for:

Battery Type Selection

Most of us aren't just running Optimas - we've got lawnmower batteries, motorcycle batteries, standard car batteries, and more that aren't necessarily AGM. If you want to charge different types of batteries and you want one charger to do it all, make sure the charger you pick has modes.

Recovers Deeply Discharged Batteries

Most traditional analog chargers aren't able to recover a battery discharged below 10.5 volts. Since Optima RedTops, YellowTops, and BlueTops can all be discharged below 10.5V without being wrecked like a traditional battery, they can still be recoverable but not with an old-style charger.

Let's point out:

You should not be deeply discharging Optima RedTops or dark-case BlueTops. These are starting batteries and are meant to exist at nearly full capacity during their lifetime. If you need to draw a battery down, you need a deep cycle battery, like an Optima YellowTop or light-case BlueTop. Read more about how to pick the right Optima here.

Float/Maintenance Capabilities

Lots of us have rigs that only come out in Spring, Summer, and Fall. Sometimes, you've got a project sitting in a corner for weeks at a time.

This kind of inactivity can kill your battery unless you keep it charged.

How do you keep the battery fresh?

With a float or trickle charger. Instead of dumping a relatively high amperage into the battery, a float charger will put out a lower amperage, around an amp, along with a slightly lower voltage, to maintain your battery.

Many digital chargers now come with float functions that will keep a low amp current flowing to your Optima on an as-needed basis to keep it topped-up and healthy.

If you have any kind of battery that sits for weeks at a time without being used, you should put it on a trickle charger to prolong its life!

Safety and Battery Health

Most modern digital chargers will provide you with at least a few of these features:

  • Reverse-polarity protection
  • Thermal protection
  • Spark-free battery connection
  • Water resistance

We talk more about those below, but we at least like to see the features that can be digitally controlled because it's easy for the manufacturer to add them in.

Charger Output

This could be an article by itself. What you need to know:

The higher the amp output of the charger, the faster a battery will charge.

Batteries have a certain capacity that is measured in amp-hours. A typical Optima auto battery has around 50 amp-hours of capacity at a C20 rating.

This means the battery can provide 2.5 amps per hour over 20 hours, at which point it will have reached 10.5V. That 2.5A comes from dividing the amp-hours (50 amp-hours) by 20 hours (from the C20 rating).

But really, we're more interested in how a charger's amp output affects our charge rate, and how long it takes.

The formula for this is:

\[ \frac{AmpHour\ Rating}{Charger\ Amperage} \times 1.1 = Charge Time\ in\ Hours \]

Note that this is an approximate formula and works for batteries that are "fully" discharged to 10.5 volts. A battery at 11.5 volts, for instance, will charge faster.

Here are the common amp-hour ratings for common Optimas and their total required charge time when they start at 10.5 volts:

How Long Does it Take to Recharge a Fully Discharged Optima?

This depends on how how deeply discharged the battery is, its amp-hour rating, and the charge rate (in amps) of the charger.

We use this formula to figure out charge time:

\[ \frac{AmpHour\ Rating}{Charger\ Amperage} \times 1.1 = Charge Time\ in\ Hours \]

The formula will work for other batteries, as well. It doesn't matter if it is AGM, gel, traditional lead-acid, deep cycle, or starting. The same formula will generally apply.

Optima Battery Charging Times from Full Discharge (10.5 volts at battery terminals)
Battery Rated Amp-Hours Hours @2A rate Hours @4A rate Hours @8A rate Hours @10A rate Hours @12A rate
RedTop 25 34 18.7 9.4 4.7 9.4 3.1
RedTop 34 50 27.5 13.8 6.9 13.8 4.6
RedTop 34/78 50 27.5 13.8 6.9 13.8 4.6
RedTop 34R 50 27.5 13.8 6.9 13.8 4.6
RedTop 35 44 24.2 12.1 6.1 12.1 4.0
RedTop 6V 50 27.5 13.8 6.9 13.8 4.6
RedTop 75/25 44 24.2 12.1 6.1 12.1 4.0
RedTop 78 50 27.5 13.8 6.9 13.8 4.6
YellowTop D27F 66 36.3 18.2 9.1 18.2 6.1
YellowTop D31A 75 41.3 20.6 10.3 20.6 6.9
YellowTop D31T 75 41.3 20.6 10.3 20.6 6.9
YellowTop D34 55 30.3 15.1 7.6 15.1 5.0
YellowTop D34/78 55 30.3 15.1 7.6 15.1 5.0
YellowTop D35 48 26.4 13.2 6.6 13.2 4.4
YellowTop D51 38 20.9 10.5 5.2 10.5 3.5
YellowTop D51R 38 20.9 10.5 5.2 10.5 3.5
YellowTop D75/25 48 26.4 13.2 6.6 13.2 4.4
YellowTop DS46B24R 38 20.9 10.5 5.2 10.5 3.5
YellowTop H6 72 39.6 19.8 9.9 19.8 6.6
BlueTop 34M 50 27.5 13.8 6.9 13.8 4.6
BlueTop D27M 66 36.3 18.2 9.1 18.2 6.1
BlueTop D31M 75 41.3 20.6 10.3 20.6 6.9
BlueTop D34M 55 30.3 15.1 7.6 15.1 5.0

5 Good Optima Battery Chargers

Optima 400 Battery Charger - MADE FOR YOUR OPTIMA, LOW OUTPUT

Optima 400 Battery Charger
This charger works for Optima batteries, as well as non-AGM batteries.

The Optima 400 Charger is Optima's smaller battery charger. This charger is good if you mostly want to maintain an Optima and occasionally need to charge a deeply discharged battery. This charger will do everything you want, but at a slower rate than a larger charger.

What we like:

  • Fully featured and designed for Optima batteries
  • Has a hybrid LED/LCD display that shows charge amount and battery stats
  • Hangs on a hook, stands up, or hangs on your wall
  • Compact size

What we don't like:

  • Somewhat low 4 amp max charge rate

While this charger will charge any AGM or lead-acid battery just fine, it has a slightly low output at 4 amps max, which means it'll take longer to bet your battery fully charged.

The 400 has a number of features that are good for safety and your Optima's health:

It'll adjust the charge rate depending on the temperature. This is important because extreme heat and cold both have a big effect on your battery.

It has spark-free battery connection. This has been a particular problem in the past with batteries that off-gas hydrogen. Hydrogen ignites easily which means that historically, we've always had to be careful about hooking up a battery in case a spark might ignite the hydrogen.

Optima 400 Battery Charger Manual

The charger also has reverse polarity protection. We've never had a problem with hooking up the 12V leads the wrong way, but could imagine that this would screw up the electronics in the charger. Anyway - if you hook up the leads incorrectly, the charger won't work.

The 400 will charge small batteries (like a lawnmower or motorcycle battery) at 3 amps and large batteries at 4 amps.

The charger is multistage, meaning it'll run through these 6 stages:

  • Stage 1: Analyze your battery for the state of charge and quality of connections before charging.
  • Stage 2: Soft ramp charging-controlled amperage for deeply discharged batteries - when necessary.
  • Stage 3: Fast charge bulk mode for batteries moderately discharged - also known asnormal battery usage.
  • Stage 4: Conditioning mode for conditioning your battery with a finish/complete charge.
  • Stage 5: Auto maintain, float mode for keeping your battery fully charged.
  • Stage 6: A 30-day storage recondition mode - while your vehicle or battery is in storage and is being maintained.

It includes a 6' long AC for hooking up to a 100-120VAC receptacle and a 6' DC cable for hooking up to your battery.

Optima 1200 Battery Charger - MADE FOR YOUR OPTIMA, HIGH OUTPUT

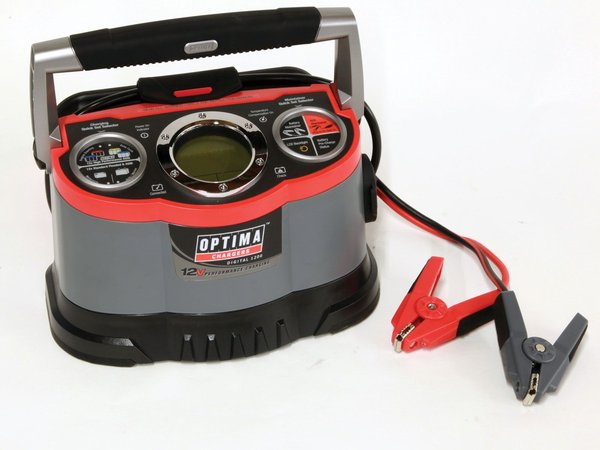

Optima 1200 Battery Charger
The 1200 can charge any battery quickly, with a high 12A charge output - the highest of the chargers we looked at. It's the most fully featured charger of the bunch.

The Optima 1200 Charger is Optima's big battery charger. This charger is perfect for regular charging, charging deeply discharged batteries, and float charging batteries that will be "resting" for a few weeks or more.

It has a much higher output than the Optima 400 charger at 12 amps (versus the 400's 4 amps) so it'll charge much faster.

If you have a more serious shop with lots of projects, we think this is a better charger than the 400. It's more likely that you'll be using it more and can use the extra juice.

What we like:

  • Fully featured and designed for Optima batteries
  • LED/LCD display that shows charge amount and battery stats
  • In-clamp LED light for hooking up in the dark
  • High 12 amp charging

What we don't like:

  • USB charging port is gimmicky

One feature that initially seemed pretty dorky is the in-clamp LED light. This is obviously super-handy when you're can't see working in the dark and can't see which post you're hooking up to. Not essential, but a nice touch. We don't really care about the included USB port - we have enough of those.

The Optima 1200 charger has the same safety features of the 400

It'll adjust the charge rate based on temperature to keep your Optima in good shape.

It has spark-free connections to keep you from exploding in your garage if you have an off-gassing battery.

It has reverse-polarity protection so you can't hook up the leads incorrectly. It has everything else, so why not this, too?

Optima 1200 Battery Charger Manual

The 1200 will charge large or small batteries without a problem. Like the 400 it'll do starting, deep cycle, AGM, or standard flooded batteries. It's the one charger to rule them all.

The charger is multistage, meaning it'll run through these 6 stages:

  • Stage 1: Analyze your battery for the state of charge and quality of connections before charging.
  • Stage 2: Soft ramp charging-controlled amperage for deeply discharged batteries - when necessary.
  • Stage 3: Fast charge bulk mode for batteries moderately discharged - also known asnormal battery usage.
  • Stage 4: Conditioning mode for conditioning your battery with a finish/complete charge.
  • Stage 5: Auto maintain, float mode for keeping your battery fully charged.
  • Stage 6: A 30-day storage recondition mode - while your vehicle or battery is in storage and is being maintained.

It includes a 6' long AC for hooking up to a 100-120VAC receptacle and a 6' DC cable for hooking up to your battery.

CTEK Multi US 3300 Battery Charger - QUALITY ON A BUDGET

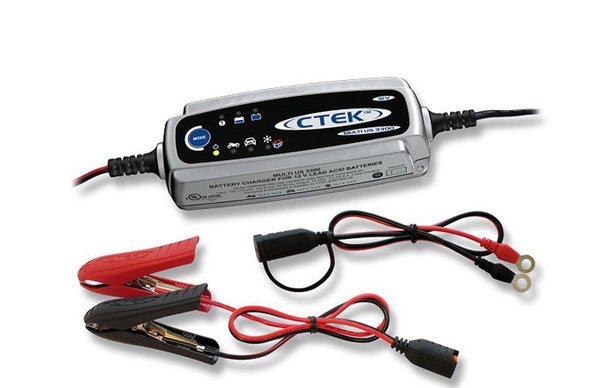

CTEK 3300 Battery Charger
This budget charger from CTEK has a slightly low charge rate, but is great for charging and maintaining RedTops.

There are several CTEK chargers available, but we picked out 3 of the most popular and highest rated.

The 3300 is a small and simple charger, putting out 3.3 amps. It's the least sophisticated charger on this page and also has the lowest output.

If you've got one vehicle battery that you need to charge and maintain, this charger is a great choice.

The 3300 is IP65 waterproof, which means it's splash and dust-proof.

The Optima chargers have a setting for deep cycle batteries. However, the 3300 is only specified to work with Optima RedTops (it'll also work with dark-case BlueTops).

What we like:

  • Small and robust
  • Simple operation for wide array of batteries including Optima RedTops
  • Rainproof

What we don't like:

  • Low charging output

Once your battery is charged, the charger switches to a maintenance mode. It includes ring terminals that you can permanently hook up to your Optima if you want to be able to use it as a float charger.

CTEK Multi US 3300 Battery Charger Manual

As a digital charger, the 3300 has several protection features built-in:

It won't charge if you swap the 12v leads (reverse-polarity protection) and has spark-free connections. This is great especially for non-sealed batteries that are more prone to off-gassing explosive hydrogen.

The CTEK 3300 will also automatically desulphate your batteries if it detects sulfation.

CTEK MUS 4.3 Test and Charge Battery Charger - ALL OPTIMA CHARGER

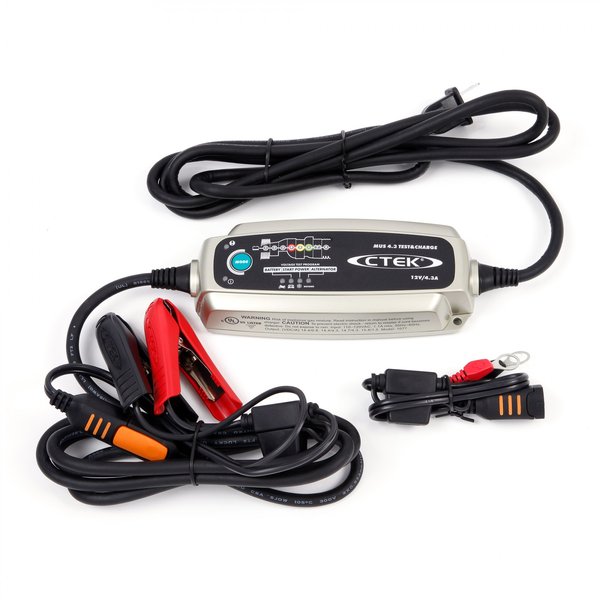

CTEK MUS 4.3 Test and Charge Battery Charger
This mid-range charger from CTEK will charge desulfate, and trickle charge ALL Optima batteries. It has a 4.3A charge output.

The MU 4.3 Test and Charge is different from the 3300 by having a slightly higher charge current at 4.3 amps, plus it does some diagnostics on your charging system to inform you of it's performance. While CTEK specifies that you can use the 3300 for RedTops, the MUS 4.3 is fine for any Optima.

It's also IP65 waterproof, which means it's splash and dust-proof. Rain is okay, submersion is not.

The MU 4.3 specifically has a mode for Optimas and a picture of an Optima on the mode selection. While it charges normal flooded batteries at 14.4 volts, it'll charge Optimas at a higher 14.7 volts - just what they need.

What we like:

  • Small and robust
  • Simple operation for wide array of batteries including all Optimas
  • Charging system diagnostics
  • Rainproof

What we don't like:

  • Low charging output

The charger is fully automatic and will switch to a float mode once your Optima is charged up. It charges at a max of 4.3 amps.

CTEK builds protection features into all its chargers:

  • Reverse-polarity protection
  • Spark-free connections

CTEK MUS 4.3 Battery Charger Manual

The CTEK MUS 4.3 has 8 steps it'll run through in a charge cycle:

  • Step 1 - Desulfation: Detects sulfated batteries. Pulsing current and voltage, removes sulfate from the lead plates of the battery restoring the battery capacity.
  • Step 2 - Soft Start: Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery.
  • Step 3 - Bulk: Charging with maximum current until approximately 80% battery capacity.
  • Step 4 - Absorption: Charging with declining current to maximize up to 100% battery capacity.
  • Step 5 - Analyze: Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
  • Step 6 - Recond: Choose the Recond program to add the Recond step to the charging process. During the Recond step voltage increases to create controlled gassing in the battery. Gassing mixes the battery acid and gives back energy to the battery.
  • Step 7 - Float: Maintaining the battery voltage at maximum level by providing a constant voltage charge.
  • Step 8 - Pulse: Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.

CTEK Multi US 7002 Battery Charger - HIGH OUTPUT AND SUPPLY MODE

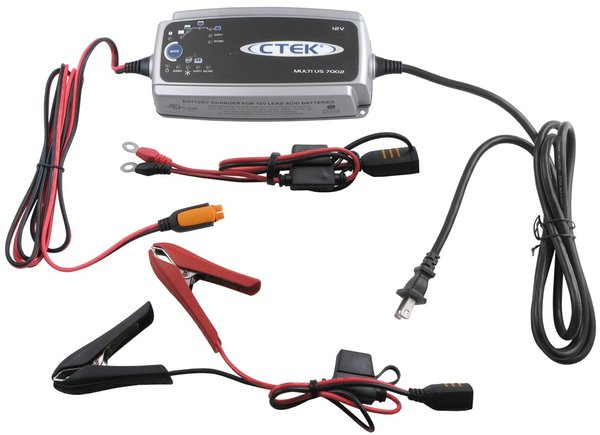

CTEK 7002 Battery Charger
One feature we really like about this charger is "Supply Mode" - it allows you to keep 13.8V at the terminals when you're swapping a battery. This can save settings and ensure that you don't trigger theft and safety features that prevent starting after a battery change.

The main ways the 7002 is different from the other CTEK chargers is that it has a 7 amp max charge current and a Supply Mode.

"Supply Mode" is pretty cool. In this mode the charger acts as a 13.8 volt power supply. It supplies up to 7 amps. There are a few ways we could use this, but the biggest one is swapping a battery without losing settings or needing to unlock the computer after the battery has been disconnected (a friend actually had to call a dealer because he disconnected the battery on a rig that was on display indoors - crazy!).

What we like:

  • Small and robust
  • Simple operation for wide array of batteries including all Optimas
  • Decent charging amperage
  • Supply Mode
  • Rainproof

What we don't like:

  • Nuthin'

With an IP rating of IP65, the charger is dust and rainproof. While it can be rained on, you should never let it be submerged.

The 7002 works great with Optimas - CTEK even says it's perfect for the YellowTop (but it'll work great for a RedTop or YellowTop, as well).

CTEK Multi US 7002 Battery Charger Manual

CTEK builds protection features into all its chargers:

  • Reverse-polarity protection
  • Spark-free connections

The CTEK 7002 has 8 steps it'll run through in a charge cycle:

  • Step 1 - Desulfation: Detects sulfated batteries. Pulsing current and voltage, removes sulfate from the lead plates of the battery restoring the battery capacity.
  • Step 2 - Soft Start: Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery.
  • Step 3 - Bulk: Charging with maximum current until approximately 80% battery capacity.
  • Step 4 - Absorption: Charging with declining current to maximize up to 100% battery capacity.
  • Step 5 - Analyze: Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
  • Step 6 - Recond: Choose the Recond program to add the Recond step to the charging process. During the Recond step voltage increases to create controlled gassing in the battery. Gassing mixes the battery acid and gives back energy to the battery.
  • Step 7 - Float: Maintaining the battery voltage at maximum level by providing a constant voltage charge.
  • Step 8 - Pulse: Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.

How To Resuscitate a Deeply Discharged Optima Battery Without a Special Charger

Make sure you follow these directions carefully! Working with batteries is dangerous. You don't want a battery exploding on you.

The problem with traditional analog chargers is that they won't start charging if the battery to be charged reads at 10.5 volts or less.

To work around this, we need to trick the battery charger. Here's what you need:

  • Jumper cables
  • Traditional analog battery charger
  • Battery discharged to around 12.4 volts
  • Dead Optima

Here's how to do it:

  1. Hook the dead Optima to the second battery with the jumper cables. Go positive to positive and negative to negative, just like you're doing a jump.
  2. Hook the battery charger up to the "good" battery (not the dead Optima) and turn it on. It'll try to charge the "good" battery, and in doing so will also charge the deeply discharged Optima.
  3. Leave it for an hour and come back.
  4. When you come back, disconnect the whole setup and check the voltage on the Optima.
  5. If the Optima's voltage is 10.5 volts or higher, you can start charging with the charger as though the Optima is a regular battery. If not, repeat steps 1 and 2 and charge for another hour. Instead of waiting a full hour to check it, check it every 15 minutes or so until it hits 10.5 volts.

Warning!

Monitor the battery during this entire process!

  • If it gets hot to the touch (warm is okay), shut it down!
  • If the Optima starts off-gassing through the vent holes, shut it down!

If either of the above happen, your Optima is probably bad.

ABOUT THE AUTHOR

Tyler Branham

Tyler came out of the womb with a Birfield in one hand and a stick of 6010 in the other, ready to weld any piece of trail-busted steel back together. He has wheeled, broken, and modified a variety of rigs, from Toyotas to Jeeps to Fords to Chevies. He likes doing long distance overland travel and would happily spend every night in the bed of a pickup under the stars.

Last updated: Mar 2019
