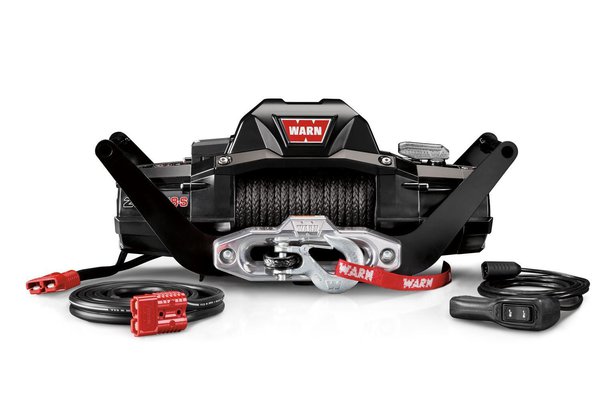

Warn Zeon 8-S Multimount Winch 90330 Specs

Rated capacity 8000 lbs. @ 6.2 ft/min
Max GVWR 5333 lbs.
Power 12V Electric
Model number 90330
Weight 103 lb
Line 100' 3/8" Premium synthetic
Size 24.25" X 7.15" X 10.52"
Attributes Electric IP68 Wired Premium Synthetic
Price @Amazon
Deals

Last updated: Sep 10, 2019

Warn Zeon 8-S Multimount Winch 90330 Max Weight Capacity ↑TOP

Maximum Vehicle Weight

You need a winch with a capacity of at least: 6750 Pounds

With your GVWR of 4500 pounds this winch is strong enough for your vehicle. This winch's capacity is times your GVWR.

Manufacturers recommend a winch capacity 1.5-2 times your GVWR.

Winch Pulling Power vs. Cable Layers

In our chart, you can see that this winch, like all winches, is more powerful with fewer wraps of cable on the drum.

If you need more pulling power, use a winch anchor that's further away or use a snatch block.

More spooled out winch line = More pulling power!

Safety issue! The first layer should always have at least 5 wraps of cable on the winch drum when the winch is under load.

Warn Zeon 8-S Multimount Winch 90330 Pulling Power per Cable Layer

▼ MORE

Warn Zeon 8-S Multimount Winch 90330 Pulling Power per Cable Layer
Cable Layers Pounds
1 8000 lbs.
2 6777 lbs.
3 5878 lbs.
4 5189 lbs.

Warn Zeon 8-S Multimount Winch 90330 Winch Lines ↑TOP

In the next chart, we look at when different winch line configurations will break when you use the Warn Zeon 8-S Multimount Winch 90330.

Stock winch line: 100' 3/8" diameter Premium synthetic

Winch lines break because they get overloaded.

Synthetic winch lines have higher breaking strengths than steel for a given diameter.

Some wheelers switch their winch line - some go up a size in synthetic (i.e. 5/16" to 3/8") to get more strength. Others will go down a size (i.e. 3/8" to 5/16") to get extra length while choosing a synthetic winch rope that has at least as much strength as the factory steel cable.

Tips

  • If you're really stuck, help your winch motor and winch line by either digging/moving dirt or repositioning your rig with a Hi-Lift Jack.
  • A double winch line using a snatch block is much safer (though slower) than a single winch line.
  • Use a winch line damper.

Winch Line Breaking Strength vs. Your GVWR

Warn Zeon 8-S Multimount Winch 90330 Power ↑TOP

Power Type Electric
Motor Voltage 12V
Gear Ratio 162:1
Gear system 3 Stage Planetary
Clutch Rotating Ring Gear
Brake Mechanical Cone
Fastest linespeed 35 ft/min pulling 0 lbs.
Slowest linespeed 6.2 ft/min pulling 8000 lbs.

We recommend electric winches for most fourwheelers.

Electric winches will work without the engine running, which may be necessary in certain situations like a rollover or with a water-flooded engine.

Winch Load vs. Motor Amperage and Line Speed

▼ MORE

Warn Zeon 8-S Multimount Winch 90330 Line Speed and Amp Draw Under Load
Load Linespeed Amp draw
0 lbs. 35 feet/minute 63 A
2000 lbs. 17.2 feet/minute 167 A
4000 lbs. 11.7 feet/minute 255 A
6000 lbs. 8.5 feet/minute 335 A
8000 lbs. 6.2 feet/minute 413 A

Warn Zeon 8-S Multimount Winch 90330 Control ↑TOP

Remote

Wired remote?
Wired remote lead length 12'
Wireless remote?
Can add wireless remote?

Winches come with a wired remote, a wireless remote, or both.

Wireless remotes work at a further distance than wired remotes, and have no cables that get snagged. You do need to make sure that the batteries have a charge.

Control Pack

Control pack type Contactor
Control pack pin count 5

Your winch remote actually controls a control pack that uses either solenoids or contactors.

Solenoids are older technology, so you find them on older and budget winches.

Contactor packs are newer technology and are found on newer winches.

Warn Zeon 8-S Multimount Winch 90330 Dimensions ↑TOP

Winch

Length 24.25"
Depth 7.15"
Height 10.52"
Weight 103 lb

Read more about how winch line and fairleads affect the weight of your winch.

Fairlead

Fairlead type Aluminum hawse
Fairlead mount distance 10"

You can use an aluminum hawse fairlead ONLY with synthetic winch rope. Steel winch cable will destroy an aluminum hawse.

You can use a steel roller fairlead with steel winch cable or synthetic winch rope.

However, note that every winch rope manufacturer DOES recommend that you switch to an aluminum hawse. This is likely because used steel roller fairleads often have gouges and burrs that can damage a synthetic winch rope.

Mounting

Mounting pattern 4.5" x 10"
Foot orientation Foot down or foot forward
Motor clockable?
Gearbox clockable?

Read more about foot-forward vs. foot-down winch mounting.

Read more about winch clocking.

Warn Zeon 8-S Multimount Winch 90330 Details ↑TOP

Features

Waterproof rating IP68
Finish Black Powdercoat
Bracing Tie Plate
Assembled in USA
See Is Warn Made in the USA?
  • Full metal armored contactor pack and gear/motor housing
  • Premium Spydura synthetic winch line

In the Box

  • Winch
  • Winch hook
  • Mounting hardware
  • Battery cables
  • Aluminum hawse fairlead
  • Wired remote
  • Temperature-resistant rope sleeve on first rope layer
  • Ballistic nylon abrasion sleeve
  • Multimount carrier for 2" receiver
  • 7.5' power lead with quick-connect

Warranty

Limited Lifetime Warranty for Mechanical Components, Limited Seven year warranty for Electrical Components

Warn Zeon 8-S Multimount Winch 90330 Installation ↑TOP

Hardware

Mounting hardware 4 - M10-1.5 x 35mm long bolts, 4 - M10 nuts
Mounting hardware torque 35 lb-ft
