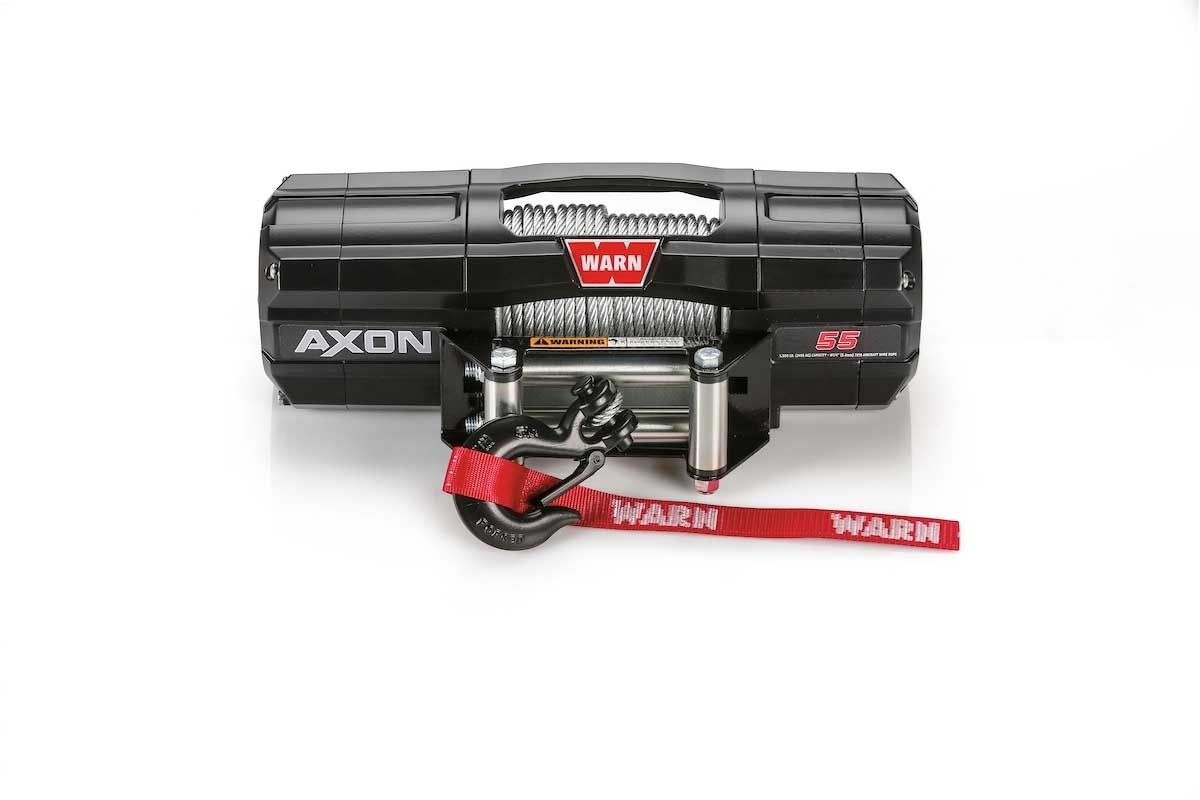

Warn AXON 55 Powersports Winch - 101155
| Rated capacity | 5,500 lbs @ 4.8 ft/min | |
| Max GVWR | 3,667 lbs. | |
| Power type | Electric 12V | |
| Model No. | 101155 | |
| Line | 1/4" x 50' Steel | |
| Wireless remote | No | |
| Handlebar/Dash Control | Yes | |
| Bluetooth receiver | Yes | |
| Waterproof | IP68 (Best) |
| Maximum pulling power | 5500 lbs |
|
Weakest pull (line fully spooled) |
3434 lbs |
| For vehicle GVWR | 2750 - 3667 lbs |
|
Winch line breaking strength (synthetic is 10% stronger) |
7000 lbs (Steel) |
| Layers of line | Pulling power | |
|---|---|---|
| 1 | 5500 lbs | Strongest |
| 2 | 4582 lbs | |
| 3 | 3926 lbs | |
| 4 | 3434 lbs | Weakest |
A winch pulls harder with fewer layers of cable on the drum.
| waterproof rating | IP68 |
| fairlead | Steel roller |
| finish | Satin black powdercoat, Stainless steel fasteners |
| bracing | One piece tie-plate |
Extras:
- Mofactor motor, combined motor and contactor
- All metal construction
- Clutch based on Warn 4x4 hub design
When you purchase this, it comes with:
- Winch
- Winch hook
- Mounting hardware
- Battery cables
- Steel roller fairlead
- Rockerbar digital control switch
- HUB Wireless Receiver
| fastest line speed | 15.8 ft/min pulling 0 lbs |
| slowest line speed | 4.8 ft/min pulling 5500 lbs |
| Weight | Line speed | |
|---|---|---|
| 0 lbs | 15.8 ft/min | No-load, fastest |
| 500 lbs | 13.4 ft/min | |
| 1000 lbs | 11.5 ft/min | |
| 1500 lbs | 10 ft/min | |
| 2000 lbs | 8.8 ft/min | |
| 2500 lbs | 8 ft/min | |
| 3000 lbs | 7.3 ft/min | |
| 3500 lbs | 6.8 ft/min | |
| 4000 lbs | 6.3 ft/min | |
| 4500 lbs | 5.9 ft/min | |
| 5000 lbs | 5.4 ft/min | |
| 5500 lbs | 4.8 ft/min | Full-load, slowest |
Winches are slower with more load.
| Wired remote? | No |
| Can add wired remote? | Yes |
| Handlebar/Dash switch? | Yes |
| Wireless remote? | No |
| Bluetooth receiver? | Yes |
| control pack type | Contactor |
| control pack pins | 4 |
| power type | Electric |
| motor voltage | 12V |
| clutch | Warn 4x4 hub tech |
| brake | Mechanical |
| highest amp draw | 254A @ 5500 lbs |
| Weight | Amps | |
|---|---|---|
| 0 lbs | 28A | Least amps, no-load |
| 500 lbs | 49A | |
| 1000 lbs | 71A | |
| 1500 lbs | 92A | |
| 2000 lbs | 114A | |
| 2500 lbs | 135A | |
| 3000 lbs | 155A | |
| 3500 lbs | 176A | |
| 4000 lbs | 196A | |
| 4500 lbs | 216A | |
| 5000 lbs | 235A | |
| 5500 lbs | 254A | Most amps, full-load |
More load requires more electricity.
Coming soon!
| Width | 15" |
| depth | 4.82" |
| height | 4.82" |
| mounting pattern | 76mm x 167mm (3" x 6.59") |
Winches with synthetic line weigh significantly less than those with steel line.
Some winches can have their motor or gearbox rotated (clocked) to fit tight spaces.
| mounting hardware | 4 - M8-1.25x25mm |
| mounting hardware torque | 18 lb-ft |
| foot orientation | Foot down |
| length x depth x height | 15" x 4.82" x 4.82" |
| mounting pattern | 76mm x 167mm (3" x 6.59") |
| warranty rating | Better |
| electrical warranty | 3 years |
| mechanical warranty | Lifetime |
